Breakout Board Options

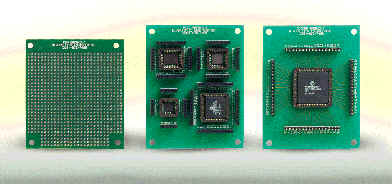

905110 905120 905130
Breakout Board Manual
905110 PGA Breakout Adapter Board- Board has a full complex of .040" platted through holes on a .1" x .1" inch grid. Allows ICā¦£128;™s and components to be assembled and soldered forming permanent custom circuits.
905120 PLCC Breakout Adapter Board- Provides sockets for 20,28, 32 and 44 pin PLCC chips including pin wiring connector interface.
905130 PLCC 68 Breakout Adapter Board- Provides socket for 68 pin PLCC chip including pin wiring connector interface.
905135 PLCC 84 Breakout Adapter Board- Provides socket for 84 pin PLCC chip including pin wiring connector interface.
905140 PQFP 208 Breakout Adapter Board Kit- Unassembled kit of parts which includes a Printed Circuit Board for mounting loose sockets and a 208 pin IC. Allows breakout of all 208 IC pins to connector interface.
905500 Wire Jumper Kit- Over 300 pieces of various length 22 gauge PVC insulated solid wires with bent striped ends used for interconnecting components on the Design Center.
905520 Power Pak/120 VAC- To be used in conjunction with the Qik Start 16 (905150), Qik Start 17 (905160) or Qik State PICmicro Education Board when used as a stand alone development tool to provide continuous power. Rated 120 VAC Input, 12 VDC 300 ma input.
| Purchase | Part# | Description | Price |
|---|---|---|---|
| 905110 | PGA Breakout Adapter Board | $5.80 | |
| 905120 | PLCC Breakout Adapter Board | $52.00 | |
| 905130 | PLCC 68 Breakout Adapter Board | $42.00 | |
| 905135 | PLCC 84 Breakout Adapter Board | $44.00 | |
| 905140 | PQFP 208 Breakout Adapter Board | $34.00 | |
| 905500 | Wire Jumper Kit | $21.00 | |
| 905510 | Patch Cord/TP Kit | $28.00 | |
| 905520 | Patch Cord Qik 16 Kit | $24.00 | |
| 905530 | Power Pak/120 VAC | $18.00 |
